DH-Robotics CGC-80-10
DH-Robotics

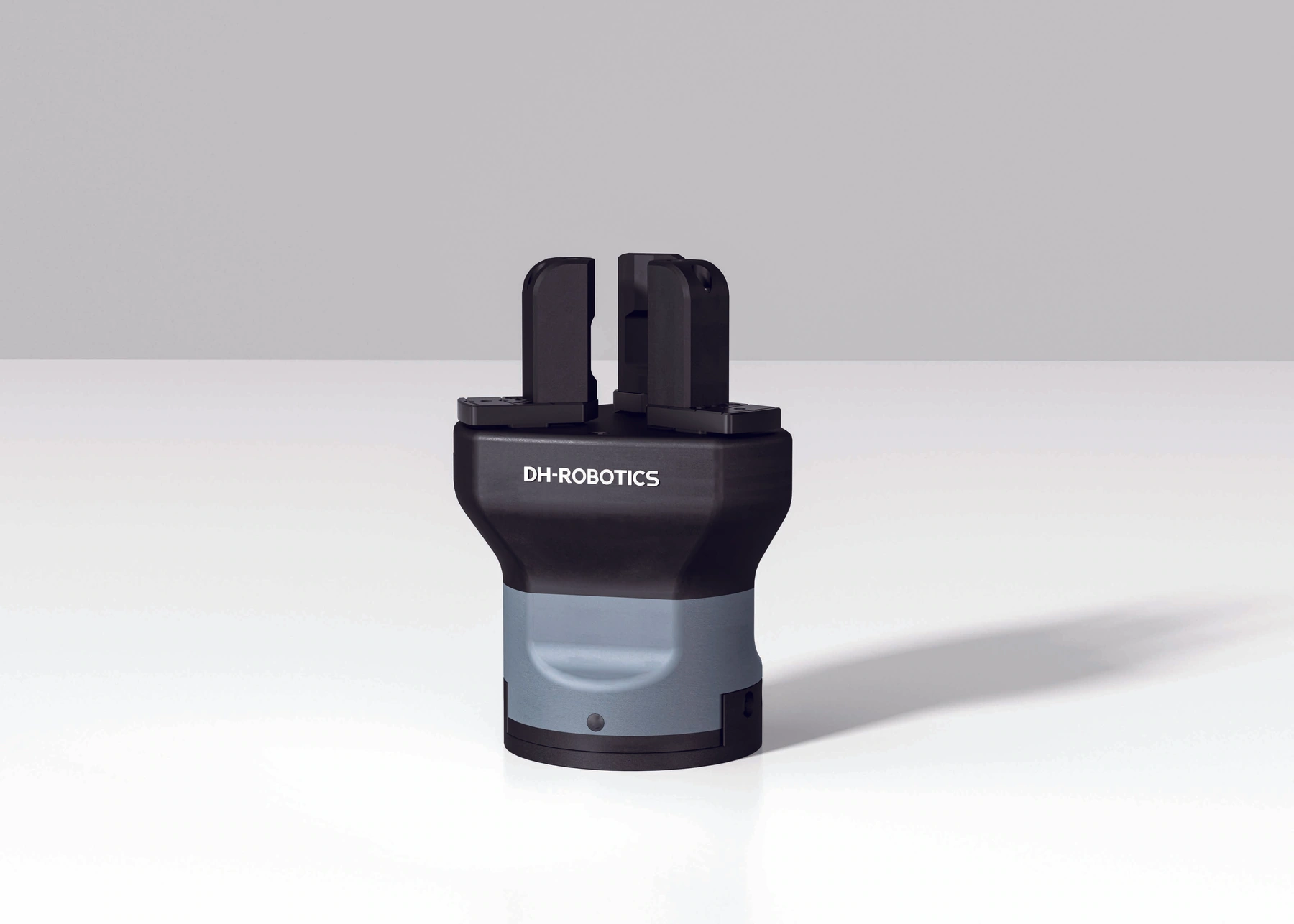

CGC-80-10 is a centric electric gripper. 20 to 80 N adjustable force per jaw for controlled gripping. Evaluate it against the observed production constraint, part flow and recovery process before choosing equipment.

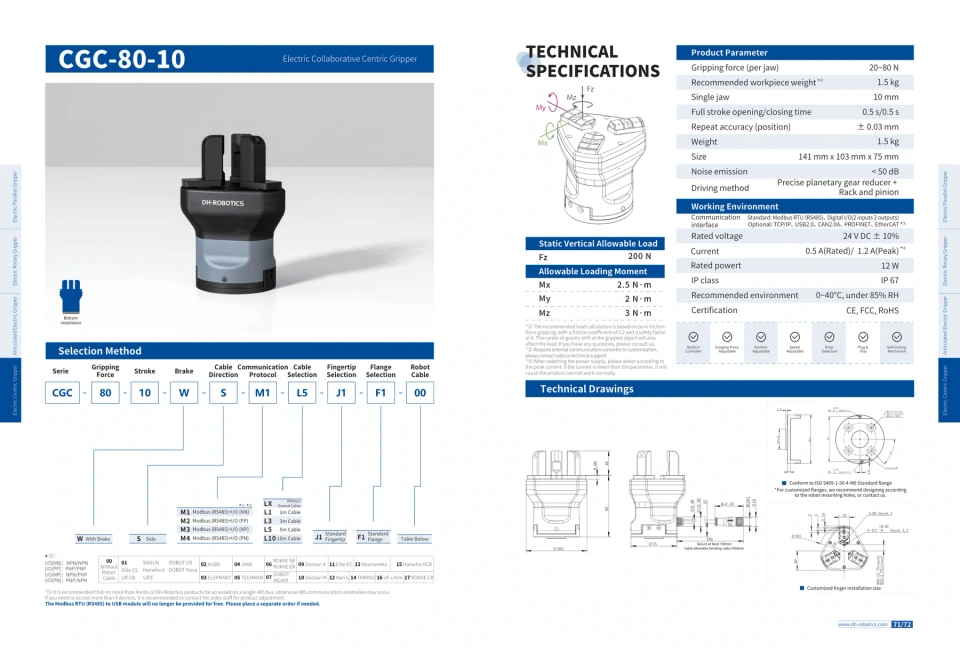

Discuss this equipmentTechnical specifications
Manufacturer-published values. Confirm the final configuration.
- Force per jaw
- 20 to 80 N
- Recommended workpiece weight
- 1.5 kg
- Stroke per jaw
- 10 mm
Tasks to consider
- Evaluate for centering cylindrical parts
- Evaluate for fixture loading
Before integration
Check finger geometry, friction, acceleration, mounting and controller compatibility with actual parts. Recommended workpiece weight is not the robot payload rating.
