DH-Robotics CGI-100-170
DH-Robotics

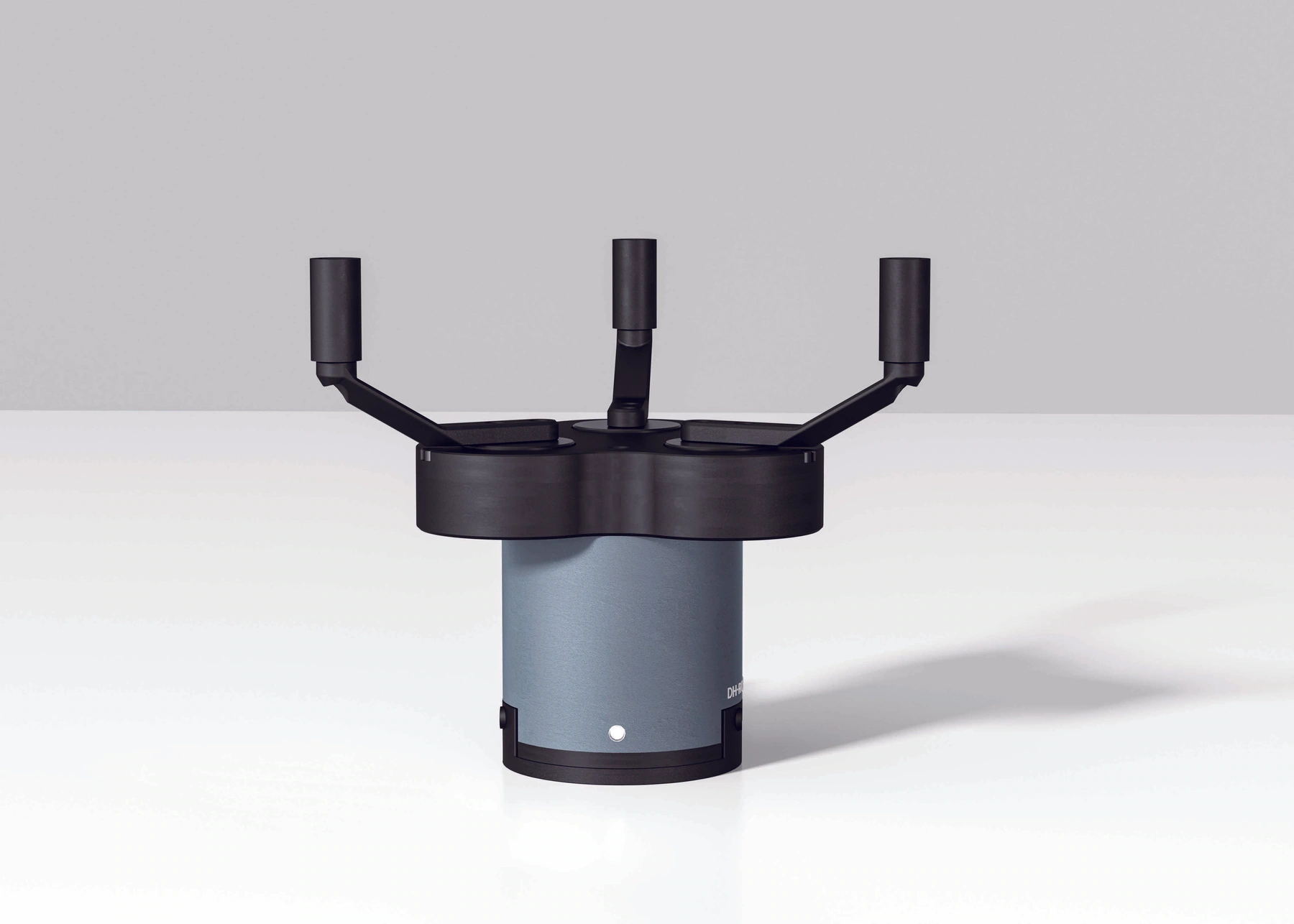

CGI-100-170 is a centric electric gripper. 30 to 100 N adjustable force per jaw for controlled gripping. Evaluate it against the observed production constraint, part flow and recovery process before choosing equipment.

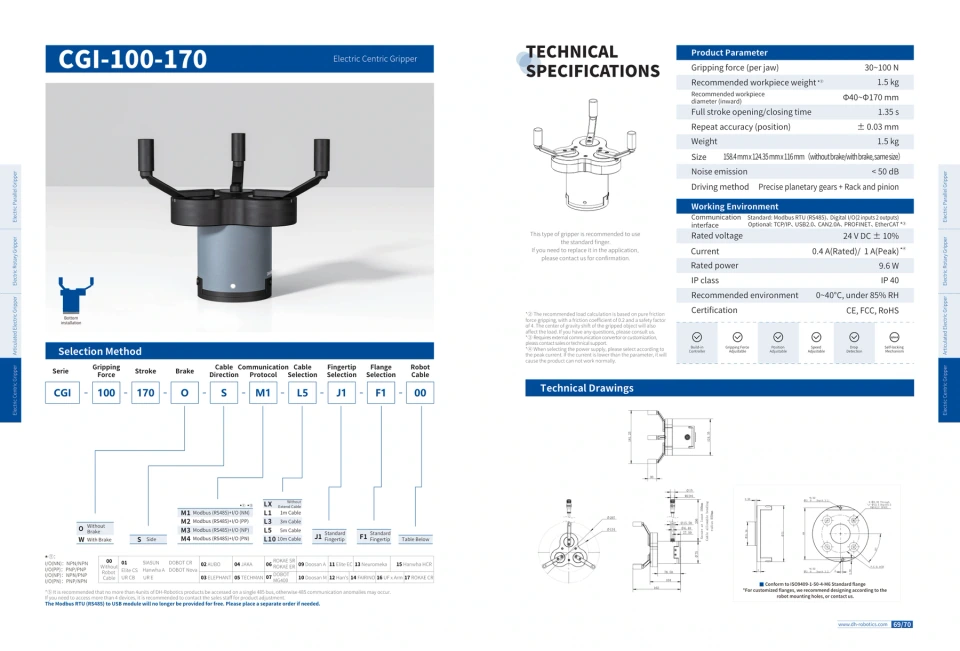

Discuss this equipmentTechnical specifications
Manufacturer-published values. Confirm the final configuration.
- Force per jaw
- 30 to 100 N
- Recommended workpiece weight
- 1.5 kg
- Recommended gripping diameter
- 40 to 170 mm
Tasks to consider
- Evaluate for centering cylindrical parts
- Evaluate for fixture loading
Before integration
Check finger geometry, friction, acceleration, mounting and controller compatibility with actual parts. Recommended workpiece weight is not the robot payload rating.
